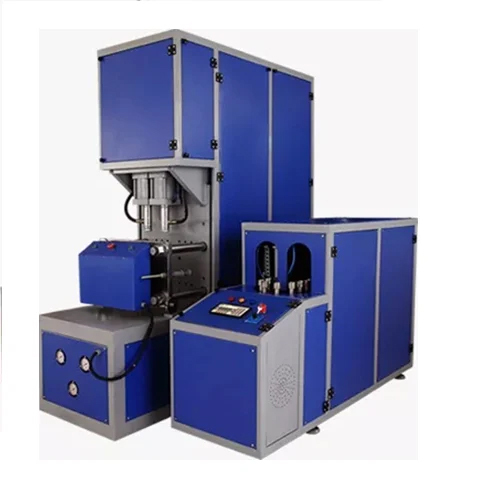

Semi Automatic Molding Machine

Name: Semi Automatic Molding Machine
Brand: PANDA MACHINES PRIVATE LIMITED (OPC)
Price: 750000 INR
Availability: InStock

Price 750000 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Semi Automatic Molding Machine Specification

Product Type
Semi Automatic Molding Machine

General Use
Industrial

Material
Stainless Steel

Capacity
1200-2200 BPH (Bottles per Hour)

Weight (kg)
780 kg

Type
PET Bottle Moulding Machine

Computerized
Yes

Automatic
Semi Automatic

Blow Moulding Type
Stretch Blow Moulding

Cavity Quantity
2 Cavity

Clamping Force
65 kN

Clamping Stroke
160 mm

Mould Stroke
350 mm

Stretching Stroke
400 mm

Low Pressure Air Displacement
1.2 m/min

High Pressure Air Displacement
2.0 m/min

Power
18 kW

Infrared Heater
Yes

Voltage
220V/380V

Dimension (L*W*H)
1850 mm x 650 mm x 1600 mm

Color
Silver

Preform Loading Type
Manual

Minimum Mould Thickness
180 mm

Additional Product Specifications

Power Consumption per Cycle
0.4 kWh

Max Container Volume
2 Liters

Environment Compliance
CE Certified

Neck Diameter Range
18-38 mm

Cycle Time
10 - 15 seconds

Operator Required
1

Heating Zone Quantity
4 Zones

Preform Holder Quantity
2

Operating Temperature Range
5C 45C

Safety Features
Emergency Stop, Door Interlock

Cooling Method
Air Cooled

Noise Level
<78 dB

Lubrication System
Centralized

Bottle Suitable Material
PET, PC, PP

Semi Automatic Molding Machine Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
10-15 Days

About Semi Automatic Molding Machine

Purchase the Semi Automatic Molding Machine for an unmatchable industrial solution. This valorous device, highly recommended for manufacturing PET, PC, and PP bottles, boasts a valiant stainless steel build and advanced safety features like Emergency Stop and Door Interlock. With a powerful centralized lubrication system and a user-friendly manual preform loading, this machine delivers exceptional performance at 1200-2200 BPH. Its 2-cavity design, computerized controls, and air-cooled system guarantee reliability and energy efficiency. Add to Cart now to experience industry-leading productivity for your business.

Direction of Use & Commercial Applications

Operate the Semi Automatic Molding Machine by manually loading preforms and utilizing the centralized lubrication system for effortless maintenance. Ideal for industrial and commercial spaces, this machine excels in the production of PET bottles, containers, and packaging solutions. Perfectly suited for distributors, manufacturers, suppliers, and traders, it streamlines bottle molding processes with efficient cycle times, ensuring consistent quality and high output across varied bottle sizes.

Certifications & Market Reach

Certified with CE for environmental compliance, the Semi Automatic Molding Machine guarantees secure and efficient operations. Available at major domestic markets and quickly dispatched from our FOB port in India, we ensure stock ready for drop-off. As an established supplier, distributor, and manufacturer, our machines are prepared for immediate delivery nationwide, supporting fast installation and reliable after-sales support for seamless operations.

FAQs of Semi Automatic Molding Machine:

Q: How does the Semi Automatic Molding Machine ensure operator safety during use?

A: The machine features advanced safety elements such as an emergency stop button and a door interlock system, reducing risks and ensuring a secure working environment for operators.

Q: What materials can be molded using this machine?

A: You can mold bottles from PET, PC, and PP materials, providing versatility in container production for a wide range of commercial packaging requirements.

Q: Where can this molding machine be applied commercially?

A: This unit is ideally used in industrial plants, bottling factories, and packaging companies needing efficient and high-throughput bottle manufacturing processes.

Q: What is the recommended process for loading preforms into the machine?

A: Preforms should be manually loaded into the designated holders. The centralized lubrication ensures smooth operation throughout each cycle.

Q: How quickly can the machine be dispatched after purchase?

A: We offer quick dispatch from our FOB port in India with immediate drop-off options. Stock is kept ready to support prompt delivery and minimize downtime for your operations.

Q: What are the main benefits of the CE certification?

A: CE certification verifies that the machine adheres to environmental protocols and safety standards, providing assurance of compliance and operational quality for all users.
