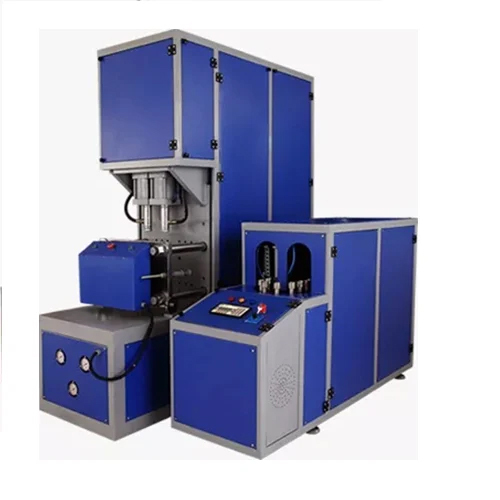

Pet Jar Blowing Machines

Name: Pet Jar Blowing Machines
Brand: PANDA MACHINES PRIVATE LIMITED (OPC)
Price: 120000 INR
Availability: InStock

Price 120000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Pet Jar Blowing Machines Specification

Product Type
Pet Jar Blowing Machines

General Use
PET Bottle Blowing

Material
Stainless Steel

Capacity
1200-1500 jars/hr

Weight (kg)
1200

Type
Fully Automatic

Computerized
Yes

Automatic
Yes

Blow Moulding Type
Stretch Blow Moulding

Cavity Quantity
2 Cavity

Clamping Force
30 Ton

Clamping Stroke
280 mm

Mould Stroke
400 mm

Stretching Stroke
360 mm

Low Pressure Air Displacement
1000 L/min

High Pressure Air Displacement
2000 L/min

Power
12 kW

Infrared Heater
Yes

Voltage
220V/380V

Dimension (L*W*H)
1800 mm x 650 mm x 1700 mm

Feature
Energy Efficient, User-Friendly Operation, High Precision

Color
Blue

Neck Diameter Range
28 mm to 120 mm

Control Panel
Digital Touch Screen

Cooling System
Water Cooling

Safety Features
Emergency Stop, Interlock Safety Doors

Heater Type
Infrared Preform Heater

Mould Changeover Time
15-20 min

Noise Level
75 dB

Hydraulic System
Integrated

Lubrication System
Automatic Centralized

Jar Volume Range
200 ml to 20 Litre

Air Compressor Requirement
8-12 Bar

Preform Loading
Manual and Automatic Supported

Pet Jar Blowing Machines Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
10-15 Days

About Pet Jar Blowing Machines

Buy online the valiant and uncommon Pet Jar Blowing Machines, designed to spotlight your production capabilities! With a neck diameter of 28 mm to 120 mm and a jar volume of 200 ml to 20 Litre, these terrific machines feature infrared preform heaters and water cooling for optimal results. The integrated hydraulic system and digital touch screen provide user-friendly operation. Purchase as a distributor, manufacturer, or supplier across India, and benefit from energy efficiency, high precision, and swift 15-20 min mould changeover. Fully automatic, stainless steel, and capable of producing 1200-1500 jars/hr, this stretch blow moulding machine ensures reliable and powerful performance.

Competitive Edge and Versatile Use

Pet Jar Blowing Machines excel in primary competitive advantages such as energy efficiency, high precision, and robust safety features, including emergency stops and interlock safety doors. Ideally suited for PET bottle blowing in varied capacities, these machines deliver user-friendly operation and rapid mould changeover times. Designed for automatic continuous performance, they support both manual and automatic preform loading, making them unmistakably versatile for manufacturers aiming for reliability and cost-effective production.

Supply Capacity, Payment Terms & Certification

With steadfast packing & dispatch procedures, Pet Jar Blowing Machines supply ability meets industrial demands with prompt outlay. We facilitate flexible payment terms to suit distributors, manufacturers, and traders. Each unit complies with industrial certifications, ensuring top-tier standards and reliability. Our streamlined supply chain guarantees timely delivery anywhere in India, affirming confidence in machine performance and service throughout the supply journey.

FAQs of Pet Jar Blowing Machines:

Q: How does the infrared preform heater benefit the PET jar blowing process?

A: The infrared preform heater ensures uniform heating of preforms, allowing for optimal stretching and forming during the blow moulding process. This results in high-precision jars with consistent wall thickness and reduced material wastage.

Q: What is the primary use of the Pet Jar Blowing Machine?

A: The Pet Jar Blowing Machine is specifically designed for manufacturing PET bottles and jars, suitable for various industries such as food, beverage, cosmetics, and pharmaceuticals with jar volumes from 200 ml to 20 litres.

Q: Where can these machines be purchased or supplied in India?

A: You can purchase or supply Pet Jar Blowing Machines via authorized distributors, manufacturers, suppliers, or traders throughout India. Online purchasing options are also available for seamless transactions.

Q: What process is involved in changing the mould on the machine?

A: The digital control panel allows for easy mould changeover, typically taking 15-20 minutes. The interlock safety doors and emergency stop ensure safe and efficient mould replacement.

Q: When is automatic preform loading recommended over manual loading?

A: Automatic preform loading is recommended for high-volume production to maximize efficiency, reduce labor, and maintain consistent output. Manual loading suits smaller batches or for flexible, customized production runs.

Q: What are the main benefits of the machines energy-efficient and user-friendly design?

A: The energy-efficient design lowers operational costs and environmental impact, while the user-friendly digital touch screen and automatic lubrication system simplify operation, minimize downtime, and improve overall productivity.
